Product Details:
|
| Warranty: | 6 Months | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Retail, General Machinery |
|---|---|---|---|
| Weight (KG): | 0.2 | Showroom Location: | Sri Lanka |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Condition: | New | Type: | Nozzle |
| Product Name: | Boron Carbide Nozzle | Material: | Boron Carbide |
| Port: | Shenzheng |

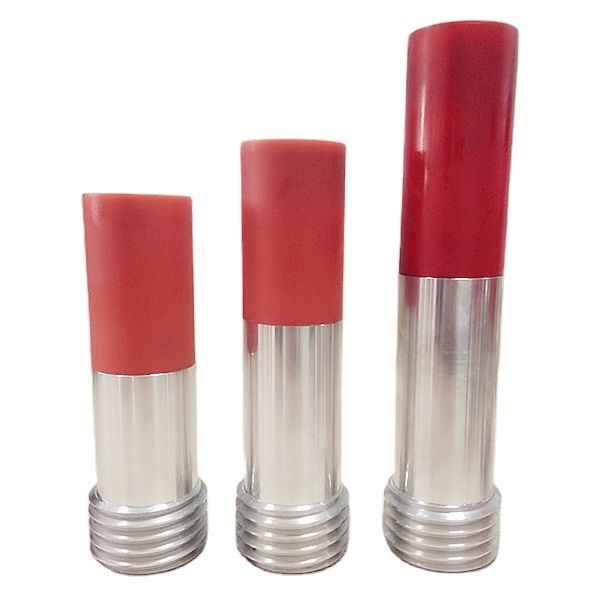

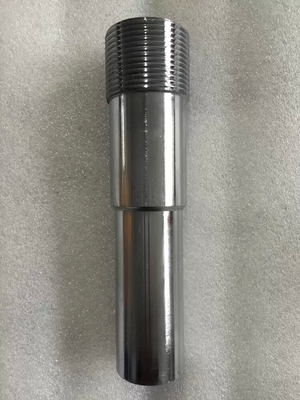

| The construction of nozzle is shrinkage part, straight part and expand part, | ||||||||
| the performance of this nozzle is better than straight hole nozzle, and the backset is improved ,the loss of pressure is reduced, th | ||||||||
| e outgoing speed of grinding material is prolong in the same pressure, the working efficiency is improved by 15%-40%, | ||||||||
| the original speed of grinding material is high due to special design of nozzle, and spray to the surface of article equality. | ||||||||
| The venture nozzle with 1-1,2” is widely used in sand blasting technics | ||||||||
| The inlet diameter of bellmounth is 32mm and 25mm | ||||||||
| Thread: BSPT 1-1,4”,11-1,2NPSM, | ||||||||
| Material | Length(mm) | OD(mm) | ID(mm) |
| boron ccarbide+steel) | 105 | 1-1/4"(41.6) | 4.8 |
| boron ccarbide+steel) | 135 | 1-1/4"(41.6) | 6.4 |
| boron ccarbide+steel) | 150 | 1-1/4"(41.6) | 8 |
| boron ccarbide+steel) | 170 | 1-1/4"(41.6) | 9.5 |
| boron ccarbide+steel) | 205 | 1-1/4"(41.6) | 11 |
| boron ccarbide+steel) | 225 | 1-1/4"(41.6) | 13 |
