Product Details:
|
| Warranty: | 3 Months | Applicable Industries: | Food & Beverage Factory, Energy & Mining |
|---|---|---|---|
| Weight (KG): | 0.5 | Showroom Location: | Sri Lanka |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Condition: | New | Type: | Nozzle |
| Material: | SS | Port: | Shenzheng |

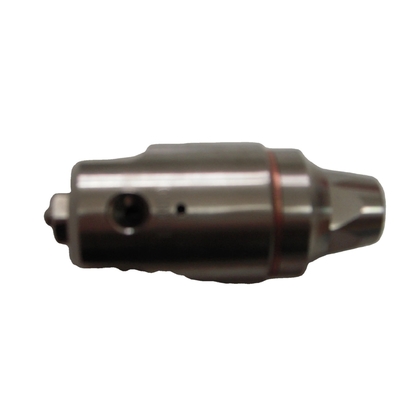

1/4 DJ Automatic Air Atomizing Nozzle(DJ)water atomizer nozzle fog mist spray nozzle
nozzle has air and liquid screw thread with the inlet size of 1/4 inch NPT or BSPT(female),and screw thread gas driver inlet size of 1/8 inch NPT or BSPT
(female).This type of nozzle is used with small-flow liquid cap.
Compact Type
1/8 DJ spray nozzle is a compact,automatic atomizing nozzle,with a pipeline for single gas,it's designed to be used in small area.The size of screw thread air inlet is 1/8 inch NPT or BSPT (inner)
Design features
DJ automatic air atomizing nozzle has an inner gas driver to control‘on-off’,and can circulate 180 times per minute.When ‘on-off’runs,only the liquid of the be shut off.The liquid flow can be carried to the nozzle body by siphon,gravity or pressure.

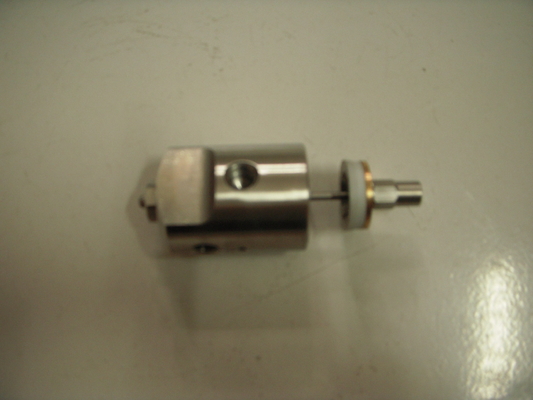

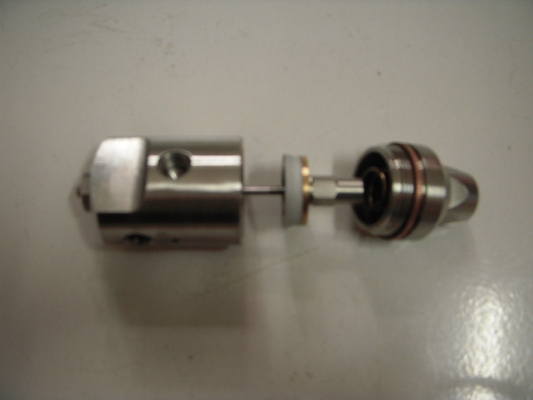

All the parts of spray nozzle are made accurately at strict quality control standard,to insure running smoothly and long service lifetime.The nozzle can be made nickel-plating brass or stainless steel.Each nozzle has a stainless steel needle valve,a stainless steel flow cap and a stainless steel spring.
1/8 DJ spray nozzle is a compact,automatic atomizing nozzle,with a single inlet for atomizing gas and driver gas.It keeps 45 degree angle between the inlet line spray line.
Single gas pipeline type
With a single gas pipeline,1/4 DJ nozzle can be used in atomizing and driving gas.It controls the pressure to drive the atomizing gas and liquid during ‘on-off’
period.This type of nozzle requires 2 bar gas pressure at least,and could circulate 180 times per minute
