Product Details:
|
| Warranty: | 3 Months | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Retail, General Machinery |
|---|---|---|---|
| Weight (KG): | 0.08 | Showroom Location: | Sri Lanka |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Condition: | New | Type: | Nozzle |
| Port: | Shenzheng |
| Part name | Coating feed | Coating orific sizeφmm | Cap No | Air pressureMpa(bar) | Air consumptionl/min | Coating flow rateml/min | Spray width mm |
| WA-101-082P | By pressure | 0.8 | E2P | 0.29(3.0) | 270 | 150 | 190 |
| WA-101-102P | 1.0 | 200 | 220 | ||||
| WA-101-101P | 1.0 | E2 | 0.24(2.5) | 145 | 180 | 200 | |
| WA-101-132P | 1.3 | H2 | 260 | 250 | 230 | ||
| WA-101-152P | 1.5 | 270 | 245 | ||||
| WA-101-182P | 1.8 | N2 | 190 | 310 | 240 | ||
|
|
|
|
|
|
|
|
|

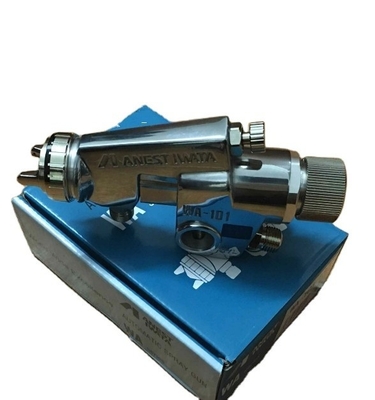

| WA-101 automactic spray gun the spray distance can be 200mm. Viscosity:20min/RV-2. Coating inlet and air inlet are:1/4PF. Application: small work piece, small spray, fix on auto sprayer machine or robot are ok, quality is steady, usually,usef for Water-based or oil-based paint spraying,eg, water, shinny coating, glue, solution, Si Li Kang , , cutting oil , lubricating oil, machine oil and antistatic agents Inlet pressure can adjust freely from (2.5 ~ 3.0bar),saving coatings ,, fine particles , excellent special effects , painting, high efficiency , fast . 2 spray cap and orific size can be match as per your requirement , .3 . paint passage are made of stainless steel , stainless steel nozzle and needle , suitable for spraying water-based coating
| |||||||
