Product Details:
|
| Type: | Powder Coating Booth | Machine Type: | Coating |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Fluidization | Warranty: | 4 Years |
| Key Selling Points: | Long Service Life | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Sri Lanka | Weight (KG): | 1 |
| Shape: | Round, Square, Round With Gap | Port: | Shenzheng |

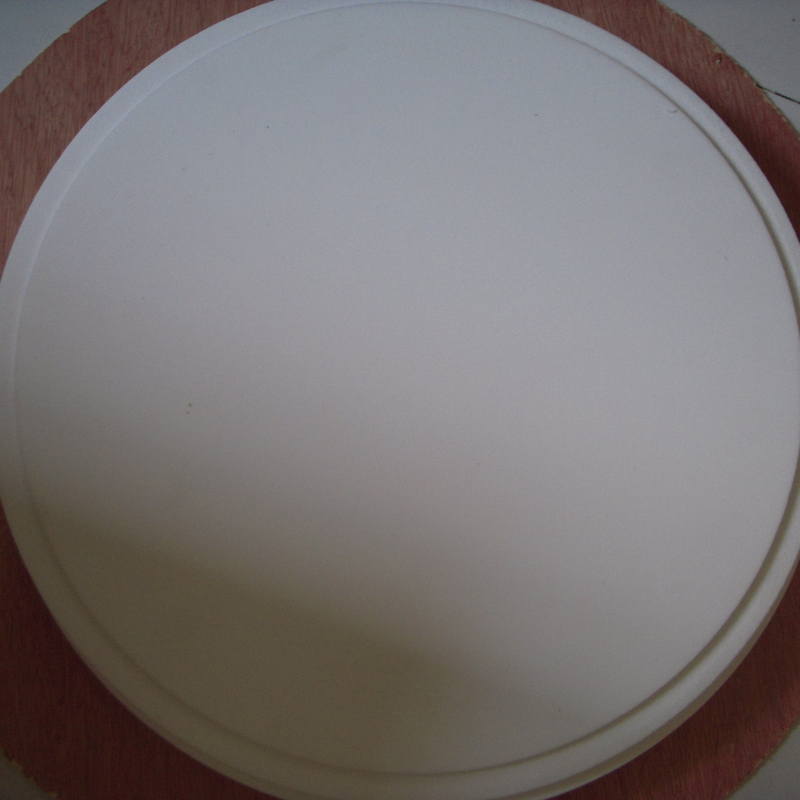

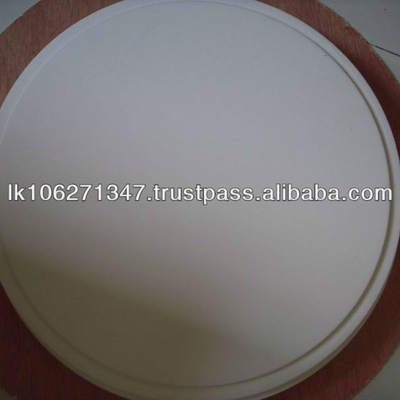

Fluidization plate is consist of supra polymer composite vinyl group material which import form American,it features anti-static electricity after modified, and widely used on fludized bed and powder spraying , chemical resistant and water-proof ,long use life
Outer shape can be round and square
Thickness: 10mm,12mm,15mm,20mm
Size can be customized as per requirement.
Venting precision:1-2um
Performance data of round Fluidization plate
| spec | material | thickness | Resistance | Air permeability | Breaking strength | Bend tenacity | density |
| 310*10T | vinyl group | 10mm | 2.82Kpa | >72m³/H | >23.8kg/50cm | <0.2mm/10kg/50cm | 0.935g/cm³ |
| 360*15T | vinyl group | 15mm | 3.15kpa | >72m³/H | >23.8kg/50cm | <0.2mm/10kg/50cm | 0.935g/cm³ |
| 400*10T | vinyl group | 10mm | 2.82kpa | >72m³/H | >23.8kg/50cm | <0.2mm/10kg/50cm | 0.935g/cm³ |
