Product Details:
|
| Warranty: | 3 Months | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
|---|---|---|---|
| Weight (KG): | 0.2 | Showroom Location: | Sri Lanka |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Condition: | New | Type: | Nozzle |
| Port: | Shenzheng |

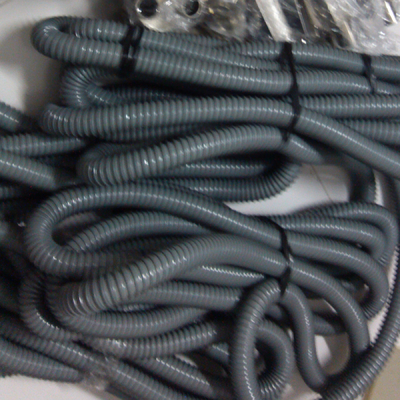

high pressure air hose features:
Light in weight, has great flexibility and easy installation inside pipes with smooth, excellent low wind resistance and wear resistance properties; strong alkali and acid resistance, good chemical resistance, resistance, suitable for discharge static electricity; bending radius equal to the diameter of the hose.
Construction: Manufacture of spiral hose made of smooth structure, made of PVC (polyvinyl chloride) and center of pressure, abrasion-resistant PVC mixtures, as keel. Temperature range: About-20 to + 70 °C, short time about + 80 °C.
High pressure hose application:
Ventilation hose, mainly used in factories, mines, indoor hot and cold air supply systems equipment. Can be used to transport used for welding, Tig welding equipment, such as gas. Can be applied to the welding gas supply stations. Can be used to collect dust, residue on various industrial equipment. Can be used to connect to heavy equipment and vehicle air filters
spec:
| spec | size(mm) | IDmm) | OD(mm) | suggest pressure (bar) | length | |
| hose | 3/4" | 19.0 ± 0.5 | 23.5 ± 1.0 | <1.370 | 10 | 0.19 |
| 1" | 25.4 ± 0.5 | 30.5 ± 1.0 | <1.110 | 10 | 0.23 | |
| 1-1/2" | 38.1 ± 0.5 | 43.9 ± 1.0 | <0.740 | 10 | 0.32 | |
| 2" | 50.2 ± 1.0 | 56.8 ± 1.5 | <0.565 | 10 | 0.41 | |
| 2-1/2" | 63.8 ± 1.0 | 70.2 ± 1.5 | <0.475 | 10 | 0.49 | |
| 3" | 76.2 ± 1.0 | 83.0 ± 1.5 | <0.380 | 10 | 0.58 | |
| 3-1/2" | 88.9 ± 1.0 | 96.5 ± 1.5 | <0.320 | 10 | 0.70 | |
| 4" | 101.6 ± 1.5 | 110.3 ± 2.0 | <0.285 | 10 | 0.85 | |
| 4-1/2" | 114.3 ± 1.5 | 124.2 ± 2.0 | <0.250 | 10 | 0.98 | |
| 5" | 127.0 ± 1.5 | 137.2 ± 2.0 | <0.230 | 10 | 1.06 | |
| 6" | 152.4 ± 1.5 | 163.4 ± 2.0 | <0.190 | 10 | 1.26 | |
| 7" | 177.8 ± 2.0 | 190.0 ± 2.5 | <0.160 | 10 | 1.51 | |
| 8" | 203.2 ± 2.0 | 229.5 ± 2.5 | <0.145 | 10 | 1.67 |
